01

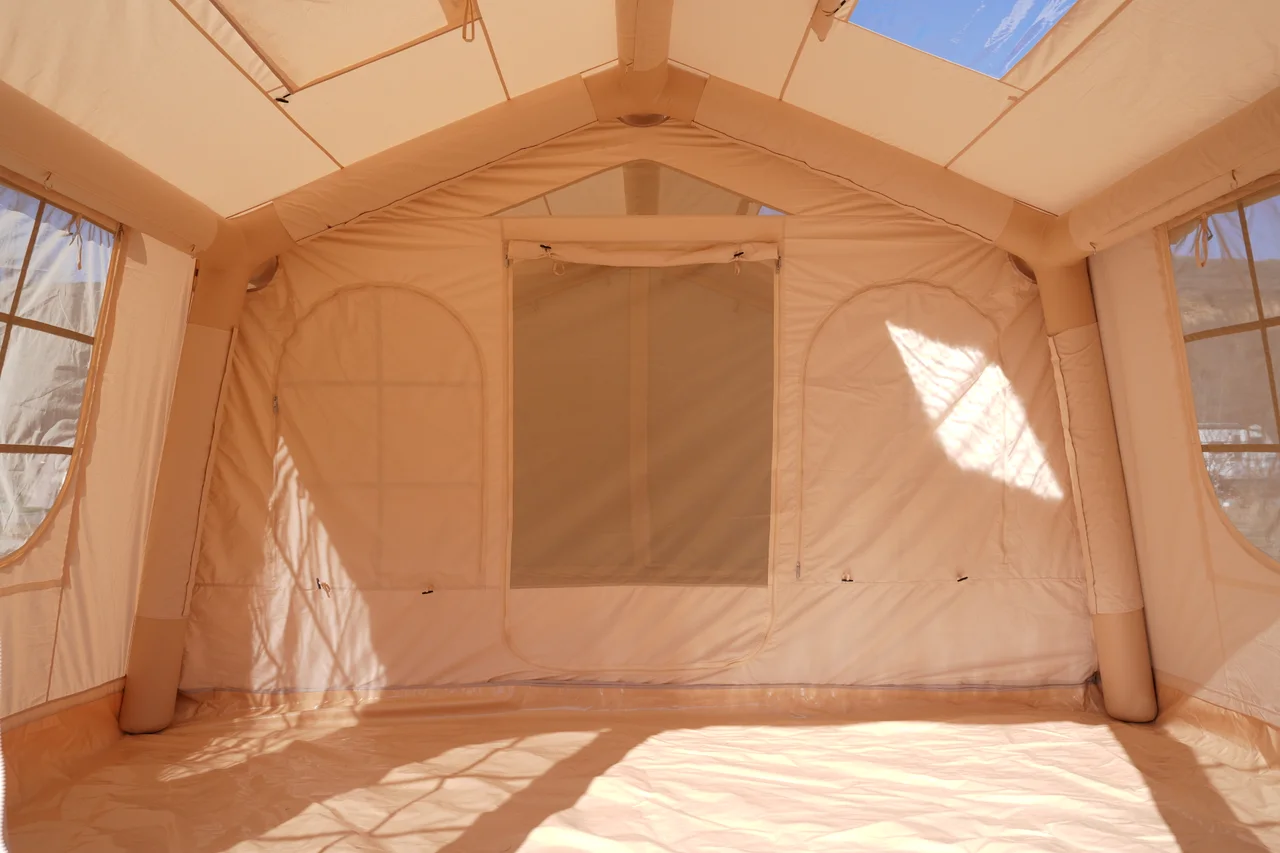

Open-plan interior & air frame
The interior view makes the covered roof and wall members, floor area, windows and entrance relationship visible for layout review.
17.28 M2 / LARGE OPEN-PLAN GLAMPING LODGE

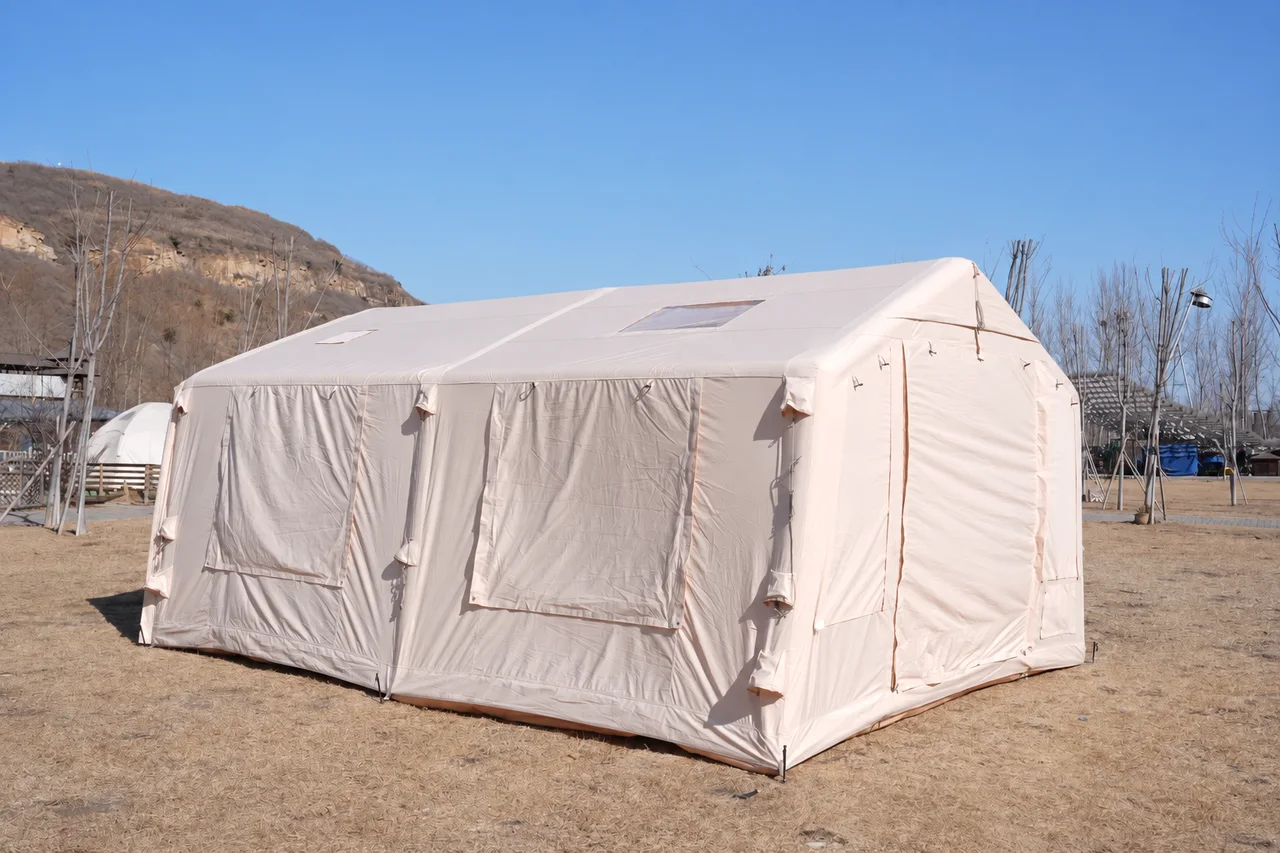

17.28 m2 Large Inflatable Glamping Lodge
A 3.6 x 4.8 m poly-cotton lodge baseline for campsites and outdoor brands that need more usable interior space. The current sample shows the inflatable primary frame, access and opening arrangement before the final specification is fixed.
- Catalogue footprint
- 3.6 x 4.8 m / 17.28 m2
- Heights
- 1.6 m side / 2.3 m peak
- Outer & floor
- 210 gsm poly-cotton / 500 gsm PVC
- Commercial start
- MOQ 50 / sample 7-15 days
01
CONFIGURATION DATA
Build your specification from a real model.
Use these model specifications to define the changes your market needs. Final dimensions, materials, components and packed set are agreed with the sample.
| Product type | Large inflatable camping and accommodation lodge |
|---|---|
| Catalogue baseline dimensions | 3.6 x 4.8 x 1.6 / 2.3 m / 17.28 m2 |
| Catalogue outer and groundsheet | 210 gsm poly-cotton outer / 500 gsm PVC groundsheet |
| Catalogue air-column baseline | PVC-fabric air columns / 16 cm diameter |
| Catalogue rain cover | 420D waterproof Oxford fabric with black coating |
| Catalogue openings and features | Skylight, chimney opening, storage pocket, TPU door and window panels, removable partition |
| Catalogue accessory set | Carry bag, guy lines, ground pegs, hammer and inflation pump |
02
CURRENT MODEL DETAILS
See what is built. Define what should change.
Compare the current tent with the size, materials and components you want in your order.
CURRENT MODEL
- Current size
- 3.6 x 4.8 m, with 1.6 m side height and 2.3 m peak height.
- Interior
- Physical views show one large open floor area beneath a covered inflatable frame.
- Openings
- The product shows wide front access, multiple side windows, roof openings and low covered openings.
CUSTOMIZE FOR YOUR ORDER
- Dimensions & zoning
- Confirm the catalogue dimensions or a revised footprint, then fix furniture clearances, partition and circulation.
- Material set
- Name and approve the outer, floor, mesh, clear panels, lining and colour samples.
- Air system & logistics
- Fix tube geometry, valves, accessories, packed dimensions and handling requirements with the sample.
03
PRODUCT DETAILS
See the space and construction before sampling.
Compare the layout, openings, materials and air-frame details that shape your version.
02

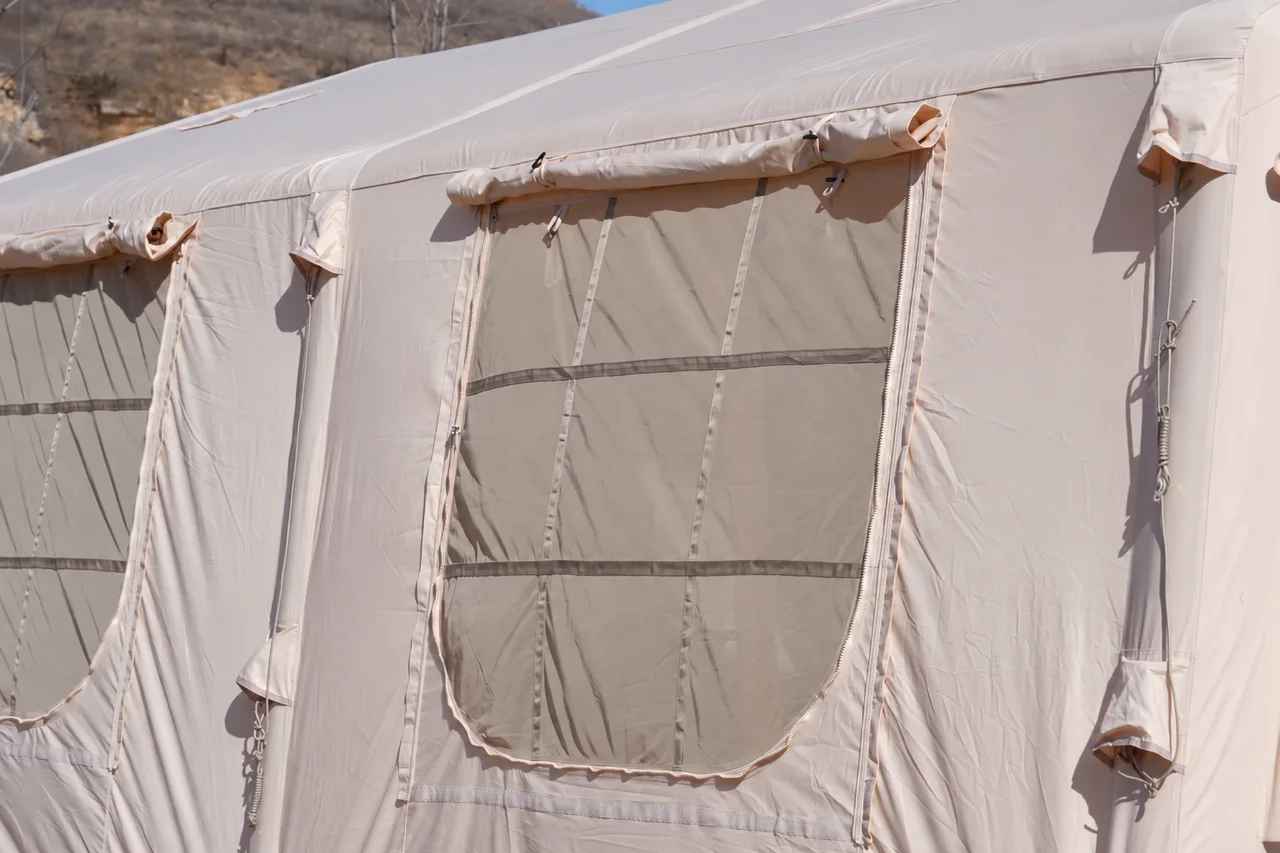

Mesh window & rolled cover
Review the mesh panel, zipper path, reinforcement strips, rolled cover and tie points against the intended use.
03

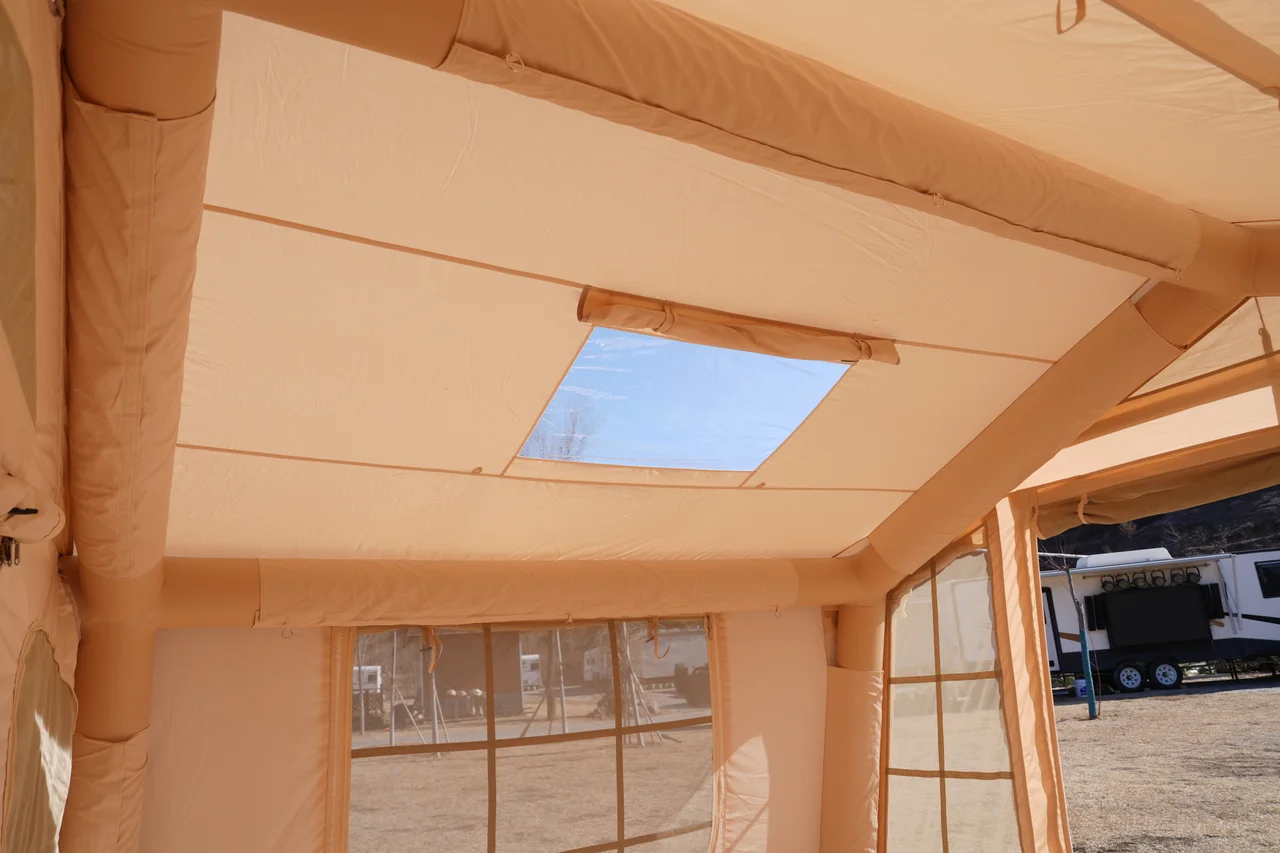

Roof opening & upper air frame
The interior roof view records the opening position and its relationship to the covered inflatable roof members.
04

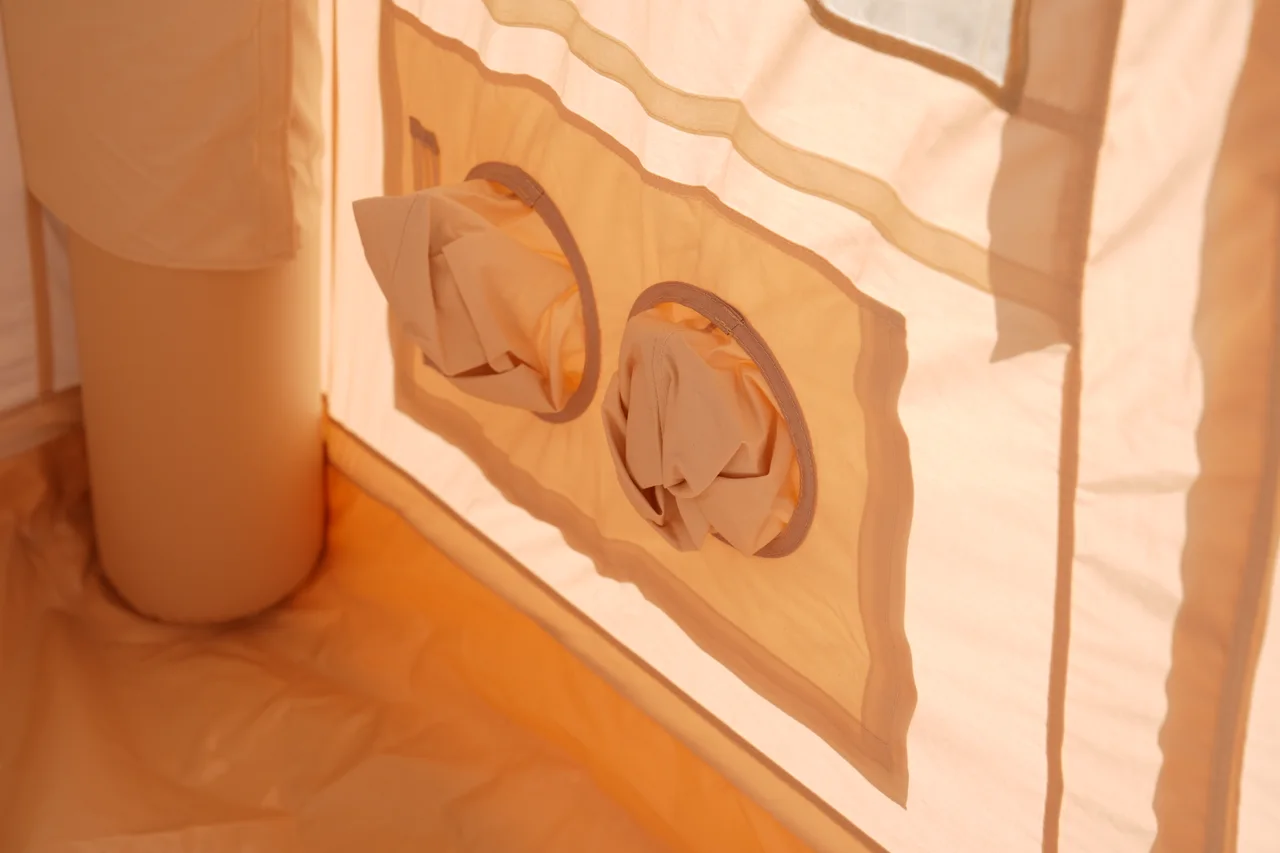

Low-level covered openings
The close view records two low openings and their surrounding fabric construction without assigning an unconfirmed function.
OPEN-PLAN INTERIOR / FINAL ZONING BY BRIEF
04
ROOM & OPENING PLAN
Start with one large open interior, then define the operating plan.
Share furniture dimensions, guest capacity, privacy needs, entrance direction and circulation. Partitions and final opening positions remain subject to structural and sample review.
Send your target floor plan05
CUSTOM DEVELOPMENT
Define the product around your market.
Choose the size, room plan, fabric and air-beam structure for your target customer.
Dimensions
Set target footprint, wall height and peak height before structural feasibility review.
Room plan
Define furniture, circulation, partitions, entrance direction and privacy requirements.
Materials
Confirm outer, floor, mesh, clear panels, colours and labels with named samples.
Air-column system
Develop tube geometry, junctions, valves, sleeves and service access around the approved plan.
Developing a private-label range from this model?Plan your brand specification
06
PACKED SET
Define what arrives with every tent.
Agree the packaging and accessory list so purchasing, warehouse and after-sales teams work from the same product specification.
| Catalogue accessory baseline | Carry bag, guy lines, ground pegs, hammer and inflation pump |
|---|---|
| Packed dimensions | Provided after dimensions, materials, accessories and packing are selected |
| Gross weight | Provided with the final sample and packing specification |
| Private label options | Carry bag, carton marks, sewn labels and instruction manual can be developed |
| Delivery planning | Lead time is assessed against quantity and the approved specification |
07
QUOTE INPUTS
Send the details that change this model.
A clear starting brief helps the factory assess feasibility, sample scope, packing and quotation without guessing.
- 01
Site and guest plan
Share the campsite or accommodation use, guest capacity, furniture, circulation and destination conditions.
- 02
Buildable dimensions
Provide the target footprint, wall and peak height, partitions, entrance direction and opening positions.
- 03
Materials and air frame
Define outer, floor, mesh, clear panels, colour, air-beam geometry, valves and service access.
- 04
Order and logistics
State sample need, quantity, branding, accessory set, packed-size limits and target delivery window.
SAMPLE DEVELOPMENT
Move from product brief to production-ready specification.
Sample development is normally 7-15 days after the configuration, sample cost and acceptance points are agreed.
- 01
Share the brief
Target market, product requirements and estimated quantity.
- 02
Confirm the scope
Configuration, feasibility, sample cost and timing.
- 03
Review the sample
Assess the agreed requirements and record revisions.
- 04
Confirm the order
Approve the specification, quantity and production timing.
AFTER-SALES PLANNING
Decide the service path before the first bulk order.
These are common field-service topics to resolve for the selected configuration, not a blanket warranty promise.
Review the support processPressure isolation
Define chamber, valve and seam-isolation steps for the final air-frame system.
Material repair
Match repair materials and instructions to each approved fabric and panel type.
Openings & hardware
Record window, zipper, cover and attachment details for service matching.
Large-format packing
Approve drying, deflation, folding, handling and repacking instructions after sample review.
BEFORE YOUR INQUIRY
Questions worth asking.
What is the current 17.28 m2 catalogue baseline?
The matched ASEN catalogue defines a 3.6 x 4.8 m version with 1.6 m side height and 2.3 m peak height, 210 gsm poly-cotton outer fabric, a 500 gsm PVC groundsheet and 16 cm diameter PVC-fabric air columns.
Can the lodge be divided into rooms?
Room zoning and partitions can be discussed, but the final plan depends on the required furniture, entrances, circulation and air-frame geometry. It is fixed during sample review.
What is the starting MOQ?
The current starting MOQ is 50 tents. Mixed-model combinations require product-by-product review.
How long does sample development take?
Sample development is normally 7-15 days after the configuration, sample cost and review scope are agreed.
Which data is required for quotation?
Send the target dimensions, layout, materials, opening plan, expected quantity, destination market and packing requirements.
BUILD THIS MODEL FOR YOUR MARKET
Tell us how this tent should work for your buyers.
Send your furniture plan, window and roof-light requirements, quantity and destination market.
